Functions and Features:
1. Mechanical, pneumatic, electrical integration. Every action is controlled by PLC program. Touch screen operation, simple and convenient.

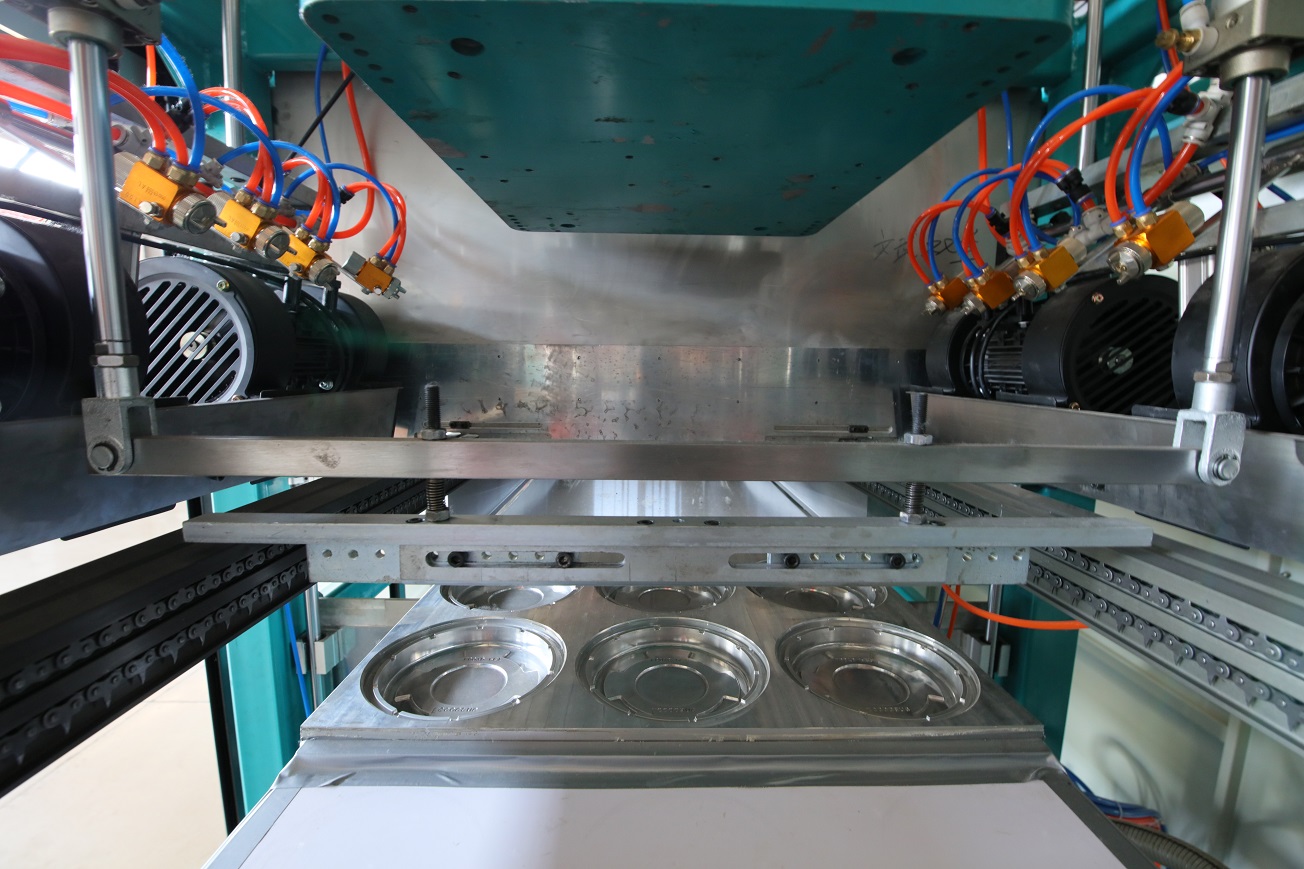

2. The upper and lower die forming method.
3. The servo to send piece, infinite length adjustment, high accurate and stable.
4. On secondary electric furnace heating.
5. Electric heating furnace temperature control system adopts full computer intelligent automatic compensation control, man-machine interface in partition - control - digital input, has a high precision fine-tuning, temperature uniformity, stability (not influenced by external voltage, temperature fluctuations is less than 1 Degrees) low energy consumption, energy saving about 15%), the furnace plate advantages of long service life.
6. Molding, cutting unit, clamping servo motor control, automatic counting output.
7. Stack products for a variety of ways, for products can be customized.
8. With product information and parameters file memory function.
9. Send caterpillar track width can be synchronous automatic electrical adjustment or division.
The electric heating furnace was removed from the device automatically.
11. Mechanical feeding device, reduce labor intensity.
Video Demo:
Product Parameter:
Material thickness
| Forming length | Forming width
| Forming height
| Cutting pressure
| Work efficiency
|
| 0.2-2.0mm | 900mm | 480-720mm | <150mm | 100T | 6-20cycle/min |
Vacuum pump power
| Whole machine power(maximum)
| Total heating power | Dimensions(L*W*H)
| Total weight | Applicable materials |
| 3.7kw | 88kw | 60kw | 12800*2000*2800mm | 11T | PET、PP、PVC、APET、PETG、PS、PLA |
Detail Features:
 |
|
|
|
|

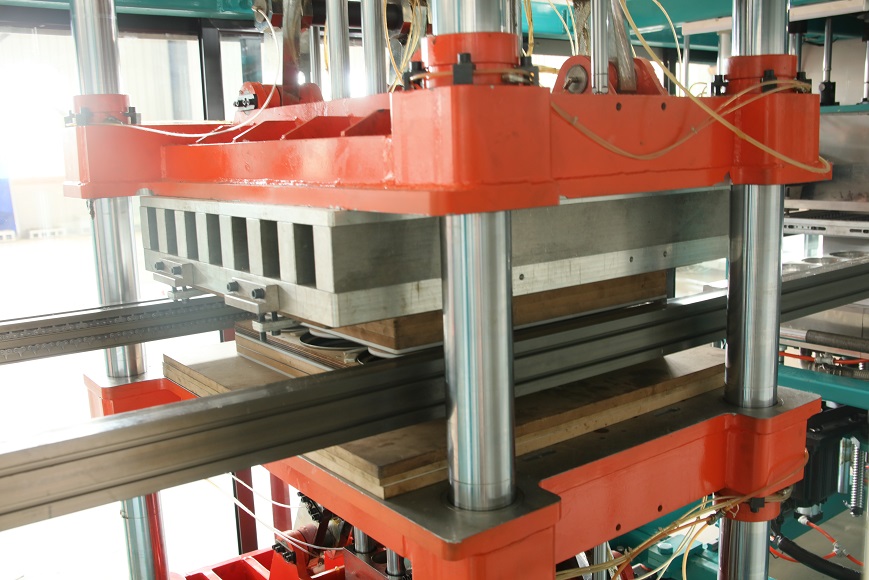

- Made of high-rigidity alloy material with hard chrome plating on the surface, offering excellent anti-deformation capability and supporting the vertical movement of the cutting mechanism.
- The torsion-resistant structure enhances the ability to withstand lateral forces, avoiding vibrations caused by eccentric loading during cutting.
|
|
- The 4 guide pillars are made of 40 chromium steel, featuring good rigidity, precision, and wear resistance.
- The servo system automatically adjusts the cutting pressure according to the material thickness and hardness to avoid over-cutting or incomplete cutting.
|
|
|
